SM MM Male / Female MPO / MTP Fiber Network Adapter For FTTH Networks

MPO Fiber Optic Adapter SM and MM Available For FTTH Networks

Descriptions
MPO/MTP adaptor provides alignment for a male and female MPO/MTP connector, its simple to use locking thread mechanism preventing accidental disconnection, this provides a very secure connection. The housing is available with MTP or SC footprint, aligned or opposed alignment keys, different colours and with options for flange or flangeless body.

Features
Applied to 4-24 core SM or MM fiber connection
Two-piece type adapter can be customized opposed (UP-DOWN)key and aligned(UP-UP) key
Two-piece type adapter can be customized plastic housing and metal housing

One-piece type adapter is stable opposed(UP-DOWN) key
Plastic housing can be customized black, green, yellow, water blue, pink and other colors
Customized with flange and short flange adapter
SC-type MPO adapter compatible with SC panel
Standard shockproof spring, close to the panel installation
Comply with IEC61754-7-1, Telcordia GR-1435, ROHS standard

Specifications
Insertion Loss: ≤0.2dB
Return Loss: ≥45dB
Mating Durability: ≤0.2dB typical change, 1000 times
Operating Temperature: -40 ~ +75 ℃
Storage Temperature: -40 ~ +85 ℃

Fiber Optic Adapter, Optical Fiber Adapter, Fiber Optic Coupler

fiber optic adaptor

fiber optic connector adapters

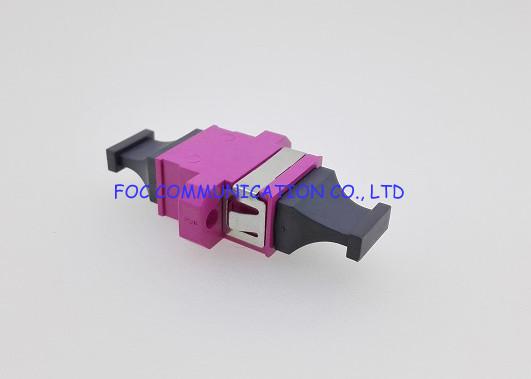

SM MM Male / Female MPO / MTP Fiber Network Adapter For FTTH Networks Images
